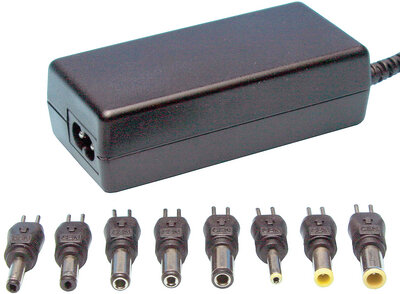

AC to DC ADAPTER output from 5Vd.c. to 12Vd.c., max. 30 watt

(Artikelnr: AM-0055-AL)

€ 39,95* € 29,95*

Prijs per stuk

Aantal: Bestellen

Output voltage 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 Output current 2.5...3 Input voltage 90...264 VAC Connection, secondary side Various plugs Polarity Reversible Input frequency 47...63 Hz Residual ripple 150 mV Connection, primary side 2-pin C8 socket Family Information Switching, fixed regulated output voltage Programming of output voltage with replaceable jumper Output current depends on output voltage Interchangeable and reversible secondary contact Mains cable and 8x secondary contacts included Jumpers included for all voltages Article Information Paper catalogues Page 1117 Environmental information RoHS 2002/95/EG Conform
